ASTERIA (NLT) Explosion Proof Lights
$0.00

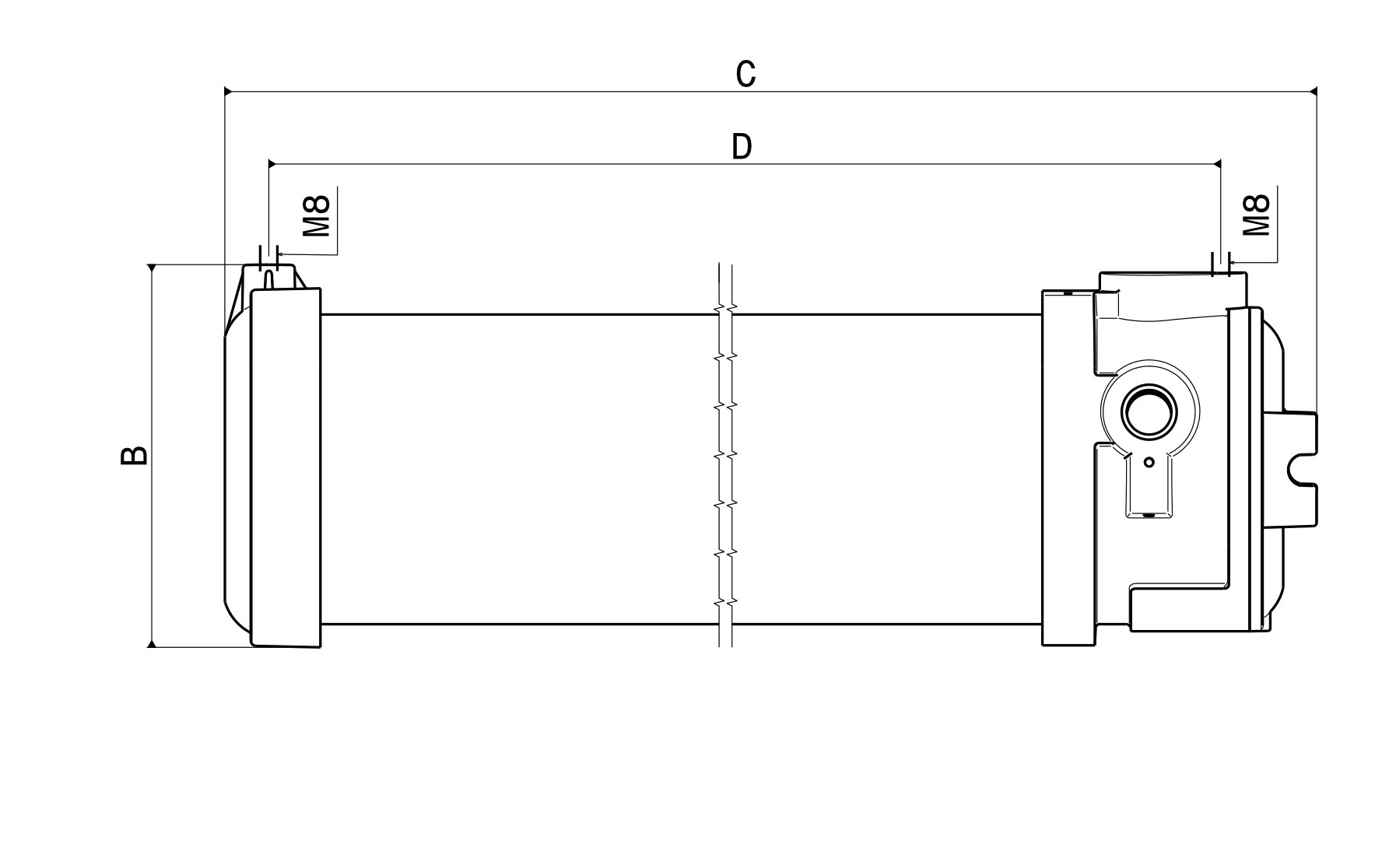

explosionproof_lights_dimensions
| size_code | 1 | 2 | 3 |
| amm | 140 | 140 | 140 |
| bmm | 148 | 148 | 148 |
| cmm | 1319 | 709 | 459 |
| dmm | 1265 | 655 | 405 |
Description
Technical Data
Explosionproof Lights
| type | NF |
| Application | Normal |
| Marking | II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC T 85°C Db |
| Ambient temperature (℃) | -20 to 55 °C |
| EU-Type Examination Certificate | ECM 19 ATEX 5851 X |
| ATEX Certificate | ECM 19 ATEX-QS 6210 |
| Degree of protection | IP66/IP67 |
| Cable entries | 2xM25 or 2xM20 |
| dimension | Size 1 ,2 |
| Enclosure Color | RAL 7037 |
| Enclosure Material | Copper free aluminum |
| Glass | Borosilicate glass |
| installation_type | Ceiling, Pendant, Pole |
| power factor | > 0.9 |
| Voltage | 230 V AC |
| Frequency (Hz) | 50-60 Hz |
| LED luminaire | 2x T8, LED Tube, 9W/18W |
| Lamp holder | G13 |
| Connecting terminals | L,N,PE :2×2.5mm2 |
| Protection class against electrical shock | I |
| luminous flux lm | 3000 lm /1420 lm |
Explosionproof Lights Model
| product code | X10 NLT 2180 | X10 NLT 2181 | X10 NLT 2090 | X10 NLT 2091 |
| Content | 2x LED lamp 18 W | 2xLED lamp 18 W | 2x LED lamp 9 W | 2x LED lamp 9 W |
| Threads | 2xM25 | 2xM20 | 2xM25 | 2xM20 |
| size | 1 | 1 | 2 | 2 |
Global standards
| IEC 60598-1 | Luminaires-General requirements and tests |
| IEC 60079-0 | Equipment for explosive atmospheres-IEC 60079-0 |
| IEC 60079-1 | Equipment for explosive atmospheres-IEC IEC 60079-1 |
| IEC 60079-31 | Equipment for explosive atmospheres -IEC 60079-31 |
| IEC 60598-2-22 | Equipment for explosive atmospheres-IEC 60598-2-22 |
| IEC 60529 | Equipment for explosive atmospheres-IEC 60529 |
Information
dimension

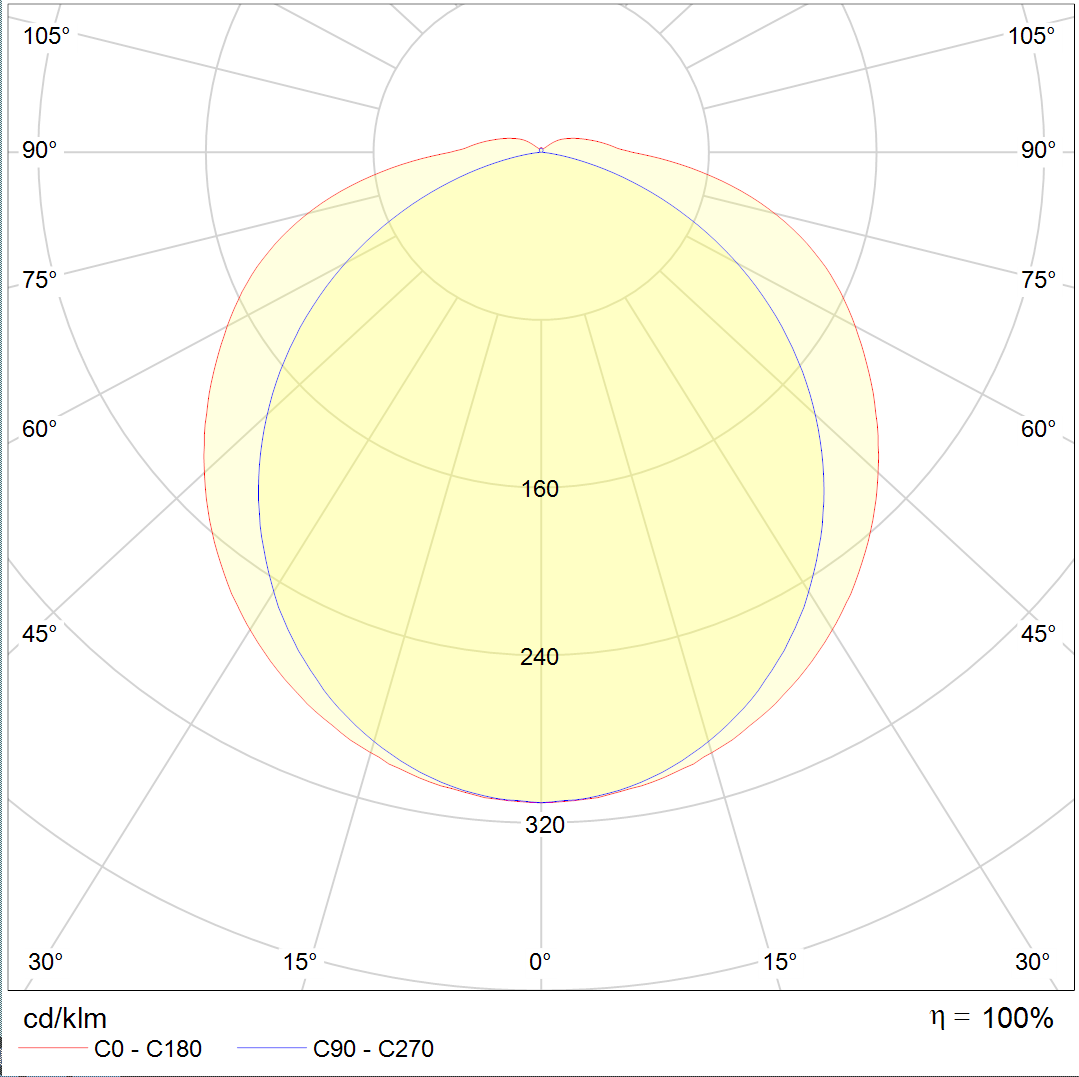

photometric data
