TS-2000 Seal Supply Systems

$0.00

Recommended applications

  • Chemical industry
  • Petrochemical industry- Oil and gas industry
  • Refining technology
Category:
Description

Description

Features

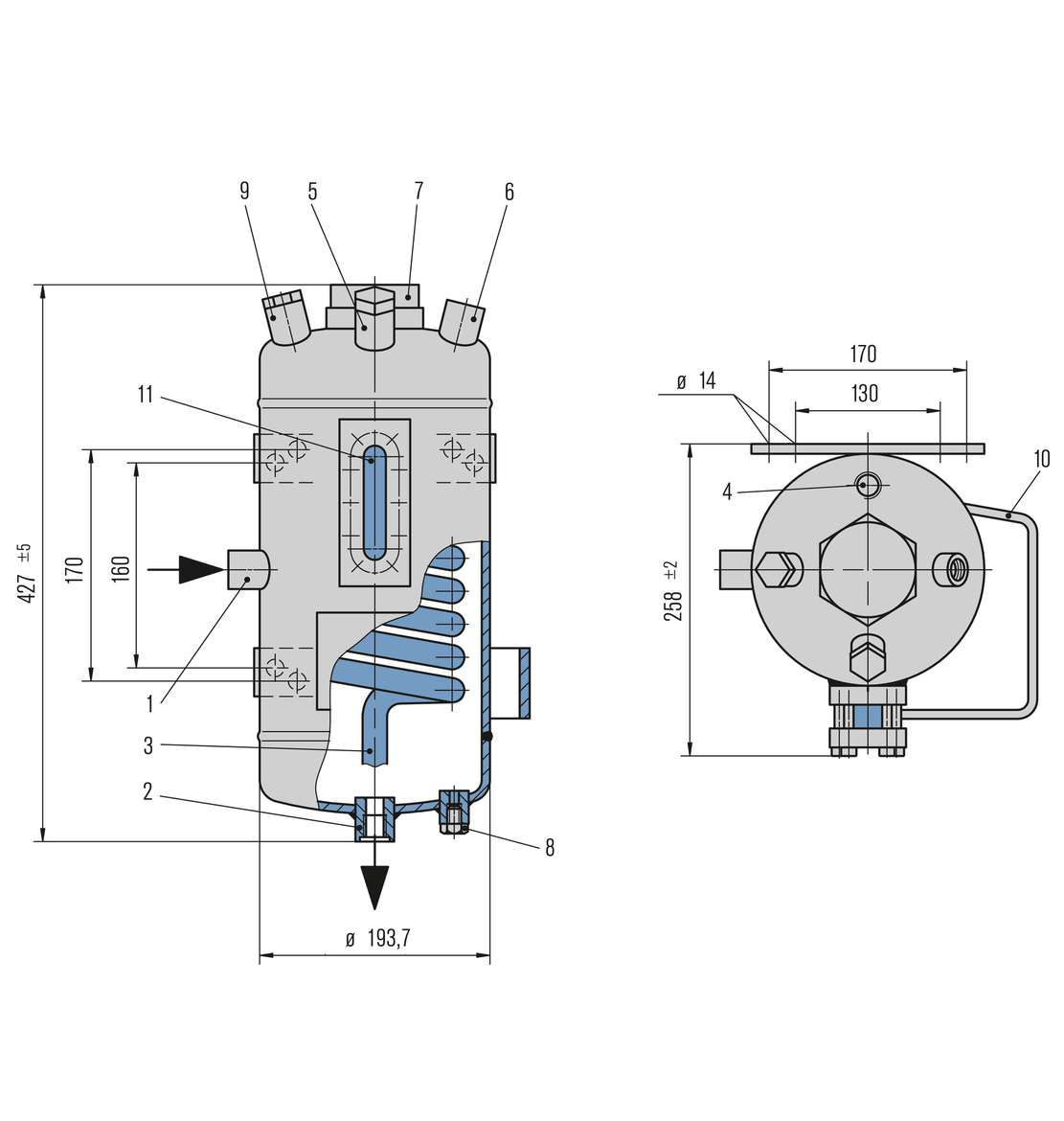

With the EagleBurgmann TS2000 thermosiphon system it is possible to supply buffer/barrier fluid to double and tandem mechanical seals for a broad range of applications. The range is available in 2 different pressure levels with dished heads, sight-glass for level monitoring and with or without cooling coil. TS vessels are equipped as standard with all the necessary system connections and brackets. The modular system allows the TS2000 vessels to be combined with a wide range of system components such as, level switch, circulation pump, hand refill pump, thermometer, base frame, etc. Circulation based on API 682 / ISO 21 049: Plan 52, Plan 53A

TS-2000 Seal Supply Systems

Advantagesvantages

  • Modular system: combination with a wide
    range of system components possible
  • Vessel made of 1.4571 stainless steel /
    borosilicate sight-glasses: suitable for
    universal applications
  • Available with or without cooling coil
  • Sockets with recessed gasket: no
    contamination of the circuit by thread
    sealant

Standards and Approvals

  •  PED 2014/68/EU (Design and production
    in accordance with EU Pressure
    Equipment Directive)
  • ASME VIII, Div. 1 (Design, calculation and
    production)
  • SELO, TR CU on request
