SOHEIL 2 Outdoor Lighting
$0.00
electrical characteristics
| parameter | 150W | 100W |
| nominal input voltage and frequency (V-AC/Hz) | 230/50 | 230/50 |
| input voltage and frequency range (V-AC/Hz) | 50~60/180~265 | 50~60/180~265 |
| nominal input power w | 150 | 100 |
| Nominal input current a@v | 0.69@230 | 0.46@230 |
| power factor | >0.95 | >0.95 |
| led module operating voltage v dc | 48 | 24 |
| total harmonic distortion thd | <15% | <15% |
| led module type | Integrated | Integrated |
| class of protection against electric shock 230v | I | I |
Description
Optical Characteristics
| parameter | 150W | 100W |
| light source led | SMD LED | SMD LED |
| number of leds in the module pcs | 144 | 96 |
| nominal power of led w | 1.5 | 1.5 |
| luminous flux lm | 16500 | 11000 |
| luminous efficiency lmw | 110 | 110 |
| color temperature k | 3000,4000,5000,6500 | 3000,4000,5000,6500 |
| color rendering index | 75 | 75 |
| sdcm initial and value | 5SDCM | 5SDCM |
| photometric code | 730/559,740/559,750/559,765/559 | 730/559,740/559,750/559,765/559 |
| lumen maintenance code | 9 | 9 |
Mechanical characteristics
| ingress protection ip | IP66 |
| body material | Aluminum die-cast |
| Diffuser Material | Tempered glass |
| body coating | Electrostatic powder painting |
| Pipe holder diameter (mm) | Ø42-48 |
| weight kg | 5.4 |
General Characteristics
| rated ambient temperature tq related to performance for the luminaire | 25 |
| working temperature range °c | -20 ~+35 |
| maximum allowed humiding % | 95 |
| rated median useful life l 70 b 50 hrs | 50000 |
| rated abrupt failure value % | 15 |
product code
| power | 150W | 100W |
| code | 378150 | 378100 |
global standards
| IES LM – 80 | Measuring Luminous Flux and Color Maintenance of LED Packages, Arrays and Modules |

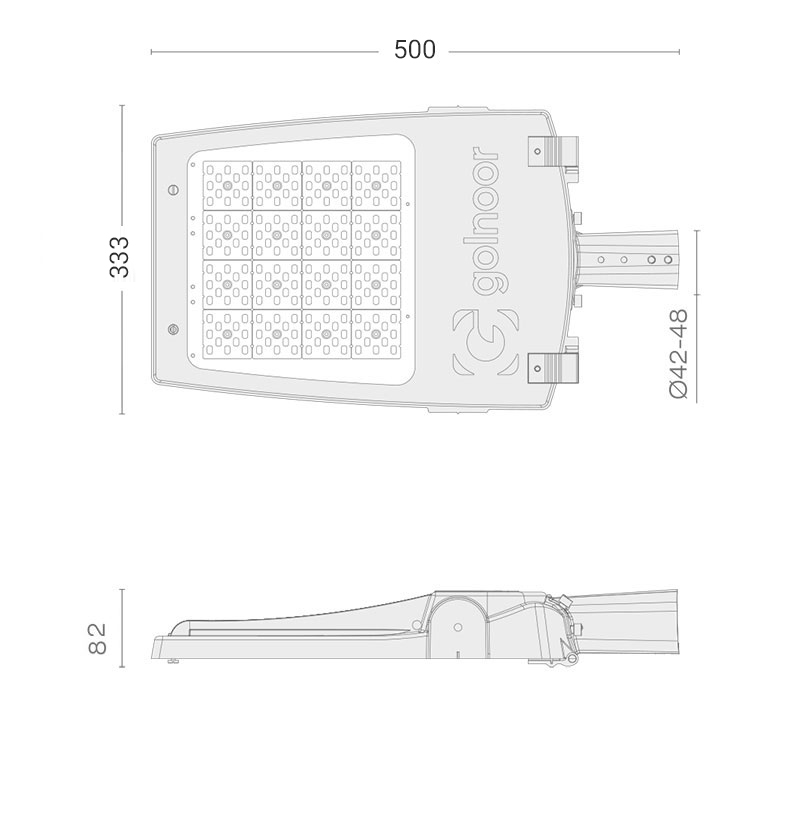

Dimension
Dimension
