Technical Data
electrical characteristics
| parameter | 15W(30×60) | 20W(30×60) | 30W(60×60) | 40W(60×60) | 60W(60×60) | 30W(30×120) | 40W(30×120) |
| nominal input voltage and frequency (V-AC/Hz) | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 | 230/50 |
| input voltage and frequency range (V-AC/Hz) | 180 – 265 / 50 – 60 | 180 – 265 / 50 – 60 | 180 – 265 / 50 – 60 | 180 – 265 / 50 – 60 | 180 – 265 / 50 – 60 | 180 – 265 / 50 – 60 | 180 – 265 / 50 – 60 |
| nominal power of led w | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| nominal input power w | 15 | 20 | 30 | 40 | 60 | 30 | 40 |
| Nominal input current a@v | 0.070@230 | 0.093@230 | 0.140@230 | 0.180@230 | 0.270@230 | 0.150@230 | 0.180@230 |
| power factor | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 | 0.95 |
| led module operating voltage v dc | 36 | 36 | 36 | 36 | 36 | 36 | 36 |
| total harmonic distortion thd | ≥ | ≥ | ≥ | ≥ | ≥ | ≥ | ≥ |
| led module type | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated | Integrated |
| class of protection against electric shock 230v | I | I | I | I | I | I | I |
Description
Optical Characteristics
| parameter | 15W | 20W | 30W | 40W | 60W | 30W | 40W |
| nominal power of led w | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| light source led | SMD LED | SMD LED | SMD LED | SMD LED | SMD LED | SMD LED | SMD LED |
| number of leds in the module pcs | 144 | 144 | 288 | 288 | 288 | 288 | 288 |
| luminous flux lm | 1425 | 1900 | 3450 | 4600 | 6900 | 3300 | 4400 |
| luminous efficiency lmw | 95 | 95 | 115 | 115 | 115 | 110 | 110 |
| color temperature k | 3000,4000, 6500 | 3000,4000, 6500 | 3000,4000, 6500 | 3000,4000, 6500 | 3000,4000, 6500 | 3000,4000, 6500 | 3000,4000, 6500 |
| color rendering index | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| sdcm initial and value | 5SDCM | 5SDCM | 5SDCM | 5SDCM | 5SDCM | 5SDCM | 5SDCM |
| photometric code | 830/559 , 840/559 , 850/559 , 865/559 | 830/559 , 840/559 , 850/559 , 865/559 | 830/559 , 840/559 , 850/559 , 865/559 | 830/559 , 840/559 , 850/559 , 865/559 | 830/559 , 840/559 , 850/559 , 865/559 | 830/559 , 840/559 , 850/559 , 865/559 | 830/559 , 840/559 , 850/559 , 865/559 |
| lumen maintenance code | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
Mechanical characteristics
| parameter | 30×60 | 60×60 | 30×120 |
| ingress protection ip | IP20 , IP6X | IP20 , IP6X | IP20 , IP6X |
| body material | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum |
| Diffuser Material | PS | PS | PS |
| body coating | Electrostatic powder painting | Electrostatic powder painting | Electrostatic powder painting |
| weight kg | 3.85 | 6.5 | 7.2 |
| dimension (mm) | L595xW295xH80 | L595xW595xH80 | L1195xW295xH80 |
General Characteristics
| rated ambient temperature tq related to performance for the luminaire | 25 |
| working temperature range °c | 45+ ~ 20- |
| maximum allowed humiding % | 90 |
| rated median useful life l 70 b 50 hrs | 50000 |
| rated abrupt failure value % | 15 |
Product code
| power | 15W | 20W | 30W | 40W | 60W |
| code | 382015 | 382020 | 382030 | 382040 | 382060 |
Global standards
| IES LM – 80 | Measuring Luminous Flux and Color Maintenance of LED Packages, Arrays and Modules |
Information
Dimension

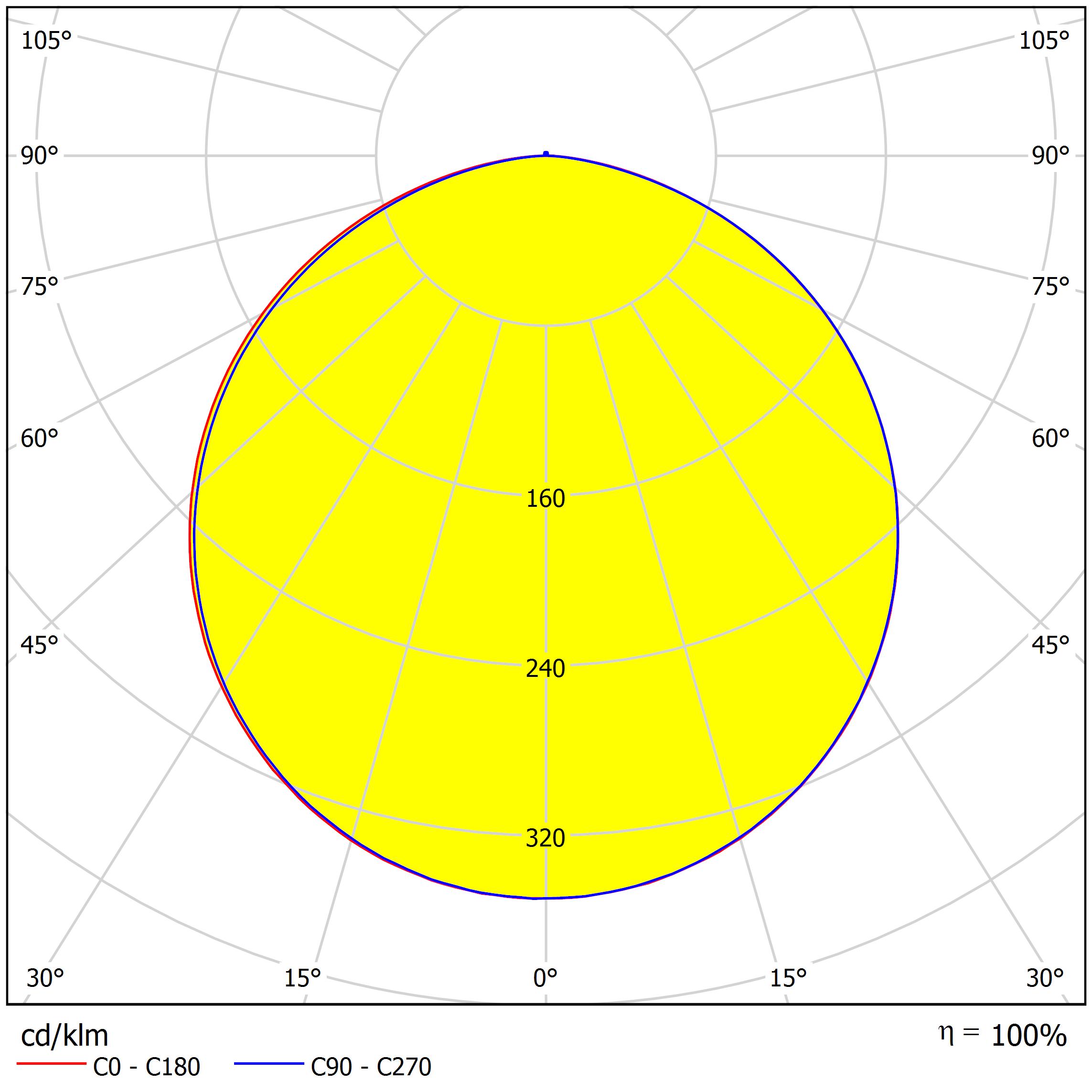

Photometric data
