Three-Phase Electro Motors With Cast-Iron Frame
$0.00
Dimension-Frame Size 100-160 (Foot mounting )
| FRAME No. IEC |
D | F | GA | DH | EH | E | L | X | I | Q | Z | AC | HA | LK | AA | A | AB | KB | K | BA | B | c | H | HD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I00L | 28 | 8 | 31 | MIO | 22 | 60 | 367 | Pq16 | 197 | 67 | 109 | 197 | 14 | 40 | 47 | 160 | 200 | 17 | 12 | 40.5 | 140 | 63 | 100 | 268 |
| 112L | 28 | 8 | 31 | MIO | 22 | 60 | 386 | Pql6 | 200 | 70 | 109 | 221 | 15 | 40 | 61 | 190 | 235 | 17 | 12 | 40.5 | 140 | 70 | 112 | 291.5 |
| 132M | 38 | 10 | 41 | M12 | 28 | 80 | 487.5 | Pq2l | 258 | 84 | 139 | 257 | 15 | 56 | 62 | 216 | 260 | 17 | 12 | 48.5 | 178 | 89 | 132 | 337.5 |
| 160L | 42 | 12 | 45 | M16 | 36 | 110 | 629 | Pq29 | 345 | 111 | 170 | 303 | 20 | 80 | 74 | 254 | 320 | 21 | 14 | 56 | 254 | 108 | 160 | 391 |
Description

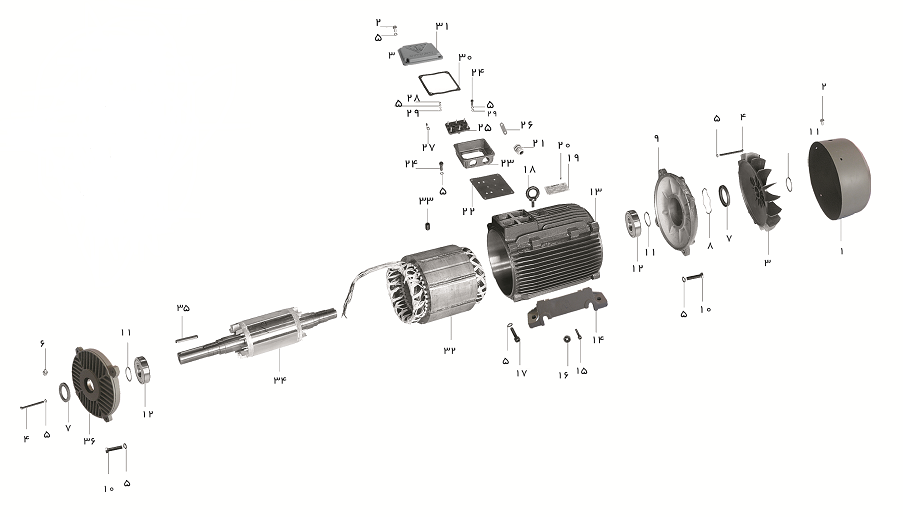

Frame size 100-160
1- Fan cover2- Cross combination head screw
3- Coolant fan
4- Hexagon head screw
5- CERRATED LOCK WASHER
6- Grease nipple nut
7- Oil seal
8- Spring ring(for balance)
9- Rear bracket
10- Hexagon head screw
11- Spring key
12- Ball-bearing
13- Frame
14- Base
15- Earth screw
16- Earth mark
17- Allen screw for frame fastening
18- Hook
19- Specifications plate
20- Rivet pin
21- Gland
22- Rubber between frame and terminal box
23- Terminal box
24- Allen screw
25- Terminal box
26- Copper connection bridge
27- Cable lug
28- Hexagon nut
29- Plane washer
30- Rubber of terminal box cover
31- Terminal box cover
32- Stator
33- Socket Allen screw
34- Rotor with shaft
35- Shaft head key
36- Front bracket
Frame size 180-400
| 1- Fan cover | 14- Inner cover | 27- Terminal box |
| 2- Cross combination head screw | 15- Frame | 28- Copper connection bridge |
| 3- Coolant fan | 16- Base | 29- Cable lug |
| 4- Hexagon head screw | 17- Earth screw | 30- Hexagon nut |
| 5- CERRATED LOCK WASHER | 18- Earth mark | 31- Plane washer |
| 6- Outer cover | 19- Allen screw for frame fastening | 32- Rubber of terminal box cover |
| 7- Oil seal | 20- Hook | 33- Terminal box cover |
| 8- Spring ring(for balance) | 21- Specifications plate | 34- Stator |
| 9- Grease nipple connector | 22- Rivet pin | 35- Socket Allen screw |
| 10- Rear bracket | 23- Gland | 36- Rotor with shaft |
| 11- Hexagon head screw | 24- Rubber between frame and terminal box | 37- Shaft head key |
| 12- Spring key | 25- Terminal box | 38- Front bracket |
| 13- Ball-bearing | 26- Allen screw | 39- Grease nipple nut |
