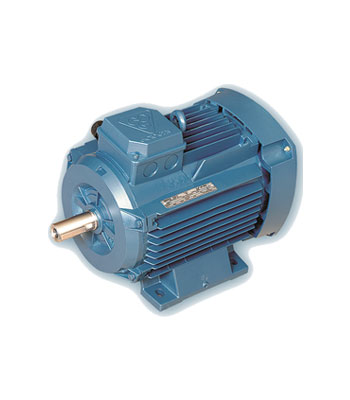

Three Phase Electro Motors With Energy Grade Of IE2
$0.00

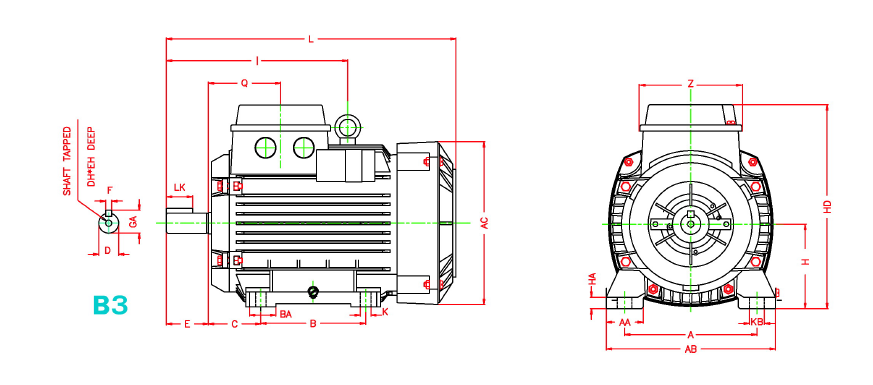

Dimension (Foot mounting)
| Frame No.IEC | HD | H | C | B | BA | K | KB | AB | A | AA | Z | HA | AC | Q | I | L | E | EH | DH | GA | LK | F | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 194 | 80 | 50 | 100 | 25 | 10 | 14 | 160 | 125 | 35 | 96 | 11 | 156 | 68.5 | – | 276 | 40 | – | – | 21.5 | 25 | 6 | 19 |
| 90L | 215 | 90 | 56 | 125 | 30 | 10 | 14 | 182 | 140 | 43.3 | 96 | 12 | 175 | 70.5 | – | 325 | 50 | 19 | M8 | 27 | 32 | 8 | 24 |
| 100L | 233 | 100 | 63 | 140 | 35 | 12 | 17 | 200 | 160 | 40 | 96 | 12 | 194 | 73.5 | – | 366 | 60 | 22 | M10 | 31 | 40 | 8 | 28 |
| 112M | 256 | 112 | 70 | 140 | 35 | 12 | 17 | 235 | 190 | 45 | 96 | 13 | 217 | 76.5 | 200 | 384 | 60 | 22 | M10 | 31 | 40 | 8 | 28 |
| 132M | 291 | 132 | 89 | 178 | 40 | 12 | 17 | 260 | 216 | 44 | 116 | 14 | 255 | 90 | 258 | 486 | 80 | 28 | M12 | 41 | 56 | 10 | 38 |
| 160L | 340 | 160 | 108 | 254 | 50 | 15 | 21 | 315 | 254 | 64 | 116 | 16 | 303 | 95.5 | 345 | 629 | 110 | 36 | M16 | 45 | 80 | 12 | 42 |
Description
Constituent parts
1- Front bracket
2- Shaft
3- Key
4- Rotor
5- Ball-bearings
6- WINDING STATOR
7- Frame
8- Terminal board
9- Terminal box cover
10- Gland parts
11- Spring ring
12- Rear bracket
13- Coolant fan
14- Fan cover
Product Specification
| Type | Frame size | Output Power | Output Power | Rated Voltage | Speed in rated load | Rated Current | Rated Torque | Efficiency (%) | Power factor | Starting / Rated Current | Starting / Rated Torque | Break down / Rated Torque | Poles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80-2A | 80 | 0.75 | 1 | 220Δ/380Υ | 2834 | 2.94Δ/1.70Υ | 2.53 | 81.2 | 0.824 | 6.05 | 3.34 | 3.57 | 3 |
| 80-2B | 80 | 1.1 | 1.5 | 220Δ/380Υ | 2850 | 4.47Δ/2.58Υ | 3.69 | 83.2 | 0.779 | 6.16 | 3.66 | 3.82 | 3 |
| 90L2B | 90 | 2.2 | 3 | 220Δ/380Υ | 2844 | 8.14Δ/4.70Υ | 7.39 | 84 | 0.846 | 6.4 | 3.08 | 3.14 | 3 |
| 100L2 | 100 | 3 | 4 | 220Δ/380Υ | 2817 | 11.22Δ/6.48Υ | 10.17 | 83.1 | 0.847 | 5.97 | 3.28 | 3.39 | 3 |
| 112M2 | 112 | 4 | 5.5 | 380Δ/660Υ | 2903 | 8.05Δ/4.65Υ | 13.15 | 86.6 | 0.872 | 7.81 | 2.91 | 3.4 | 3 |
| 132M2A | 132 | 5.5 | 7.5 | 380Δ/660Υ | 2912 | 10.78Δ/6.22Υ | 18.04 | 86.7 | 0.894 | 7.48 | 2.92 | 3.42 | 3 |
| 132M2B | 132 | 7.5 | 10 | 380Δ/660Υ | 2953 | 15.39Δ/8.88Υ | 24.24 | 89.4 | 0.828 | 11.29 | 5.12 | 5.87 | 3 |
| 160L2B | 160 | 15 | 20 | 380Δ/660Υ | 2946 | 27.93Δ/16.12Υ | 49.7 | 88.9 | 0.92 | 8.99 | 3.64 | 3.21 | 3 |
| 80-4B | 80 | 0.75 | 1 | 220Δ/380Υ | 1402 | 3.53Δ/2.04Υ | 5.11 | 79 | 0.707 | 4.85 | 2.87 | 2.85 | 3 |
| 90L4A | 90 | 1.1 | 1.5 | 220Δ/380Υ | 1415 | 4.73Δ/2.73Υ | 7.42 | 81.25 | 0.75 | 5.29 | 2.85 | 3.09 | 3 |
| 90L4B | 90 | 1.5 | 2 | 220Δ/380Υ | 1400 | 6.37Δ/3.68Υ | 10.24 | 80.7 | 0.767 | 5.05 | 2.76 | 2.81 | 3 |
| 100L4A | 100 | 2.2 | 3 | 220Δ/380Υ | 1421 | 8.40Δ/4.85Υ | 14.78 | 84.8 | 0.812 | 5.85 | 2.56 | 2.86 | 3 |
| 112M4 | 112 | 4 | 5.5 | 380Δ/660Υ | 1429 | 8.70Δ/5.02Υ | 26.73 | 85.4 | 0.818 | 6.6 | 3.02 | 3.3 | 3 |
| 132M4A | 132 | 5.5 | 7.5 | 380Δ/660Υ | 1446 | 11.31Δ/6.53Υ | 36.32 | 88.7 | 0.833 | 6.07 | 2.72 | 2.94 | 3 |
| 132M4B | 132 | 7.5 | 10 | 380Δ/660Υ | 1437 | 15.46Δ/8.92Υ | 49.83 | 87.7 | 0.841 | 6.08 | 2.76 | 2.93 | 3 |
| 160L4B | 160 | 15 | 20 | 380Δ/660Υ | 1451 | 30.73Δ/17.74Υ | 98.74 | 88.2 | 0.841 | 5.53 | 2.3 | 3.12 | 3 |
